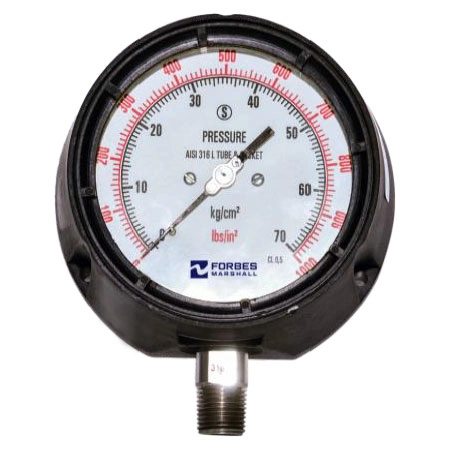

Polypropylene Case Process Pressure Gauge (PP)
The Polypropylene Case (PP) process pressure gauge is offered with an as-welded bourdon tube to ensure safety and longer life than other comparable gauges. Meeting ASME B40.1 standard, the type PP process gauge has been engineered to meet market requirements.
  • Compliance to ASME - B 40.1 , Grade 2A
  • Polypropylene case with SS316L measuring system
  • Standard ranges :-760 mmHg to 0 and 0 to 0.6 upto 700 kg/sq.cm
  • Overload capacity 125 % of FSD
  • Protection to IP67
  • Dry or liquid filled version
  • CE marking as per PED 97/23/EC
  • Solid front design features baffle wall interposed between the window and pressure relieving back for increased safety.
  • Solid front safety case
  •  Accuracy complies with ASME B 40.1 Grade 2A (± 1% of span and 0.5% on request)
  •  Adjustable movement
