SteaMon™

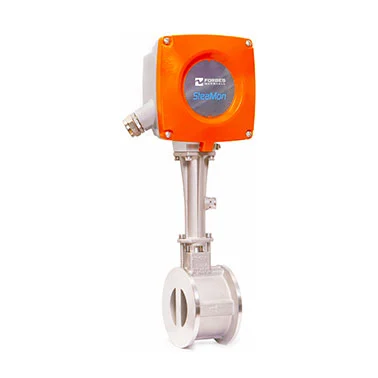

SteaMon™ is a robust, 2-wire vortex flow measurement device engineered specifically for saturated steam applications, capable of precisely measuring both volumetric and mass flow rates using the shedding frequency principle.
Designed with integrated temperature and density compensation, SteaMon™ operates perfectly even under fluctuating process conditions. It utilizes a fully welded stainless-steel structure to resist high corrosion, pressures, and temperatures, ensuring accurate measurement data that helps plant managers continuously control steam consumption and accurately diagnose leaks.
Key Technical Specifications:
- Pipeline Connection Sizes: DN 25, 40, 50, 80, and 100 / 1″, 1.5″, 2″, 3″, and 4″ (Sandwich version).
- Operating Temperature Limit: -20°C to +210°C / -4°F to +410°F maximum.
- Ambient Temperature Limit: -20°C to +70°C / -4°F to +150°F.
- Product Pressure Limit: Maximum 17.5 bar g / 253.81 psi g.
- Measurement Accuracy: ± 2% of reading for flow rate measurement.
- Power Supply: 15-36 V DC (2-wire loop powered).
- Protection Category: IP65.
Related Content:
- Integrated Temperature Compensation: Temperature sensor comes standard built-in with the primary steam flow sensor for precise density compensation.
- Durable Build: Wear-resistant, fully welded stainless-steel (CF8) vortex shedding structure.
- Maintenance-Free Sensor: The sensor is safely positioned behind the bluff body, leaving no possibility for damage or deposits on the pick-up.
- Programmable Output: 4-20 mA current output corresponding to programmed 0 & max flow values.
SteaMon
Steam Meter FLOWIRL™ 8400
Condensate Recovery Meter CRM 485R
Free Air Delivery(FAD) Meter for CompressorsFrequently Asked Questions
Steam flow metering ensures precise monitoring and control of steam usage, reducing energy wastage and optimising process efficiency. It provides critical data for improving energy management, helping to identify inefficiencies, maintaining system reliability, and achieving cost savings. Steam flow metering helps track performance, prevent losses, and enhance decision-making for sustainable operations.
Steamon uses advanced sensors and intelligent analytics to monitor steam flow, pressure, and temperature in real-time. It identifies inefficiencies, leaks, and wastage in your steam system, providing actionable insights to optimise steam consumption. This ensures better energy efficiency, reduced fuel costs, and minimal steam losses.
Steamon is designed for seamless integration with most existing steam and energy management systems. It supports industry-standard communication protocols like MODBUS, enabling real-time data sharing with SCADA or ERP systems.
Additionally, it provides remote monitoring capabilities through a secure web or mobile interface, allowing users to track performance from anywhere.
There are several factors to be considered while selecting a steam flow meter for an application.
- Steam Type – Saturated or superheated
- Steam quality
- Pressure and temperature
- Flow rate range
- Accuracy and repeatability
- Purpose – Energy monitoring and / or process control
- Integration and communication
A vortex flow meter is accurate, reliable, and low maintenance, with no moving parts, making it ideal for measuring steam across a wide range of flow rates and operating conditions while being cost-effective and energy efficient.
SteaMon™ monitors real-time steam flow, pressure, and temperature using advanced sensors. By gathering this data, it identifies wastage, system inefficiencies, and leaks, providing actionable insights to lower fuel costs and minimize energy loss.
Yes. SteaMon™ can easily integrate with existing energy management systems. It outputs a standard 4-20mA signal and supports communication protocols like MODBUS (via compatible digital devices) to allow data sharing with SCADA/ERP systems for remote monitoring.
