OPTISONIC 7300

Robust Material Construction: Measuring tubes available in 316L stainless steel or carbon steel (A106 Gr. B / A333 Gr. 6), paired with NACE-approved Grade 29 titanium transducers (optional Inconel or composite for hydrogen/oxygen service).

Broad Operating Envelope: Handles process pressures up to 431 barg / 6266 psig and temperatures ranging from -40°C to +180°C (-40°F to +356°F).

Integrated Volume Correction: Built-in flow computer capability converts actual volume flow to standard conditions using current inputs from external pressure and temperature transmitters.

Versatile Communications & Outputs: Features 3x 4…20 mA analog outputs, pulse/frequency/status discrete outputs, and HART®, Modbus RTU, or FOUNDATION™ Fieldbus protocols.

Embedded OPTICHECK Diagnostics: Provides continuous device status monitoring, parameter checks, and single-click on-site verification reporting without process interruption.

Hazardous Area Approvals: Certified for global safety standards including ATEX, IECEx, cQPSus, NEPSI, INMETRO, FM, CSA, and PESO.

Zero Pressure Loss & Energy Savings: The full-bore design presents no restrictions in the pipe, eliminating pressure drop and significantly lowering pumping and compression energy costs.

Maintenance-Free Reliability: With no moving parts or mechanical components subject to wear, maintenance overhead and operational downtime are virtually eliminated.

Hydrogen-Ready & Versatile: Reliable measurement across a broad spectrum of gases—including green hydrogen, natural gas, flue gas, compressed air, and hydrocarbon vapors—over a 100:1 turndown ratio.

Process Adaptability: Patented transducer geometry counteracts acoustic noise and density changes, guaranteeing consistent accuracy even under fluctuating flow conditions.

Simplified Compliance & Auditing: Integrated diagnostic tools streamline predictive maintenance and simplify quality compliance through verifiable, downloadable status reports.

Measurement Principle: Ultrasonic 2-path transit time differential measuring principle.

Measured Media: Natural gas, hydrogen, process gas, utility gas, compressed air, flue gas, steam, and hydrocarbon vapors.

Flow Performance: Bi-directional flow measurement with a dynamic range (turndown ratio) of up to 100:1.

Operating Pressure: Maximum 431 barg / 6266 psig (flange ratings up to PN450 / ASME Class 2500).

Operating Temperature: -40°C to +180°C (-40°F to +356°F).

Line Sizes & Connections:

• Flange sizes: DN50 to DN1000 / 2″ to 40″ (EN 1092-1: DN50…600, ASME B16.5: 2…24″).

• Alternative connection: Weld-in connections available upon request.

Materials of Construction:

• Measuring Tube: Austenitic stainless steel (1.4404 / 316L), Carbon steel (A106 Gr. B), or Carbon steel (A333 Gr. 6).

• Transducers: NACE-approved Grade 29 Titanium (standard); optional Stainless Steel/Composite or Inconel for hydrogen and oxygen service.

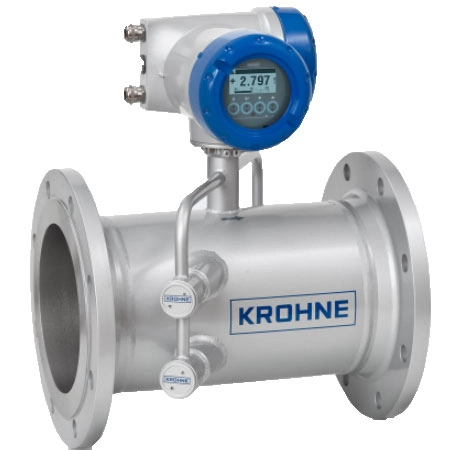

Physical Design: Full-bore design with no moving parts, no mechanical wear, and zero pressure loss; available in Compact (7300 C) or Field-mounted (7300 F) configurations.

Integrated Volume Correction: Built-in volume flow conversion to standard conditions via current inputs for external pressure and temperature sensors.

Analog & Discrete Outputs:

• Analog: 3x 4…20 mA outputs.

• Discrete: Limit switches, pulse, frequency, and status outputs.

Digital Communication: HART®, Modbus RTU, and FOUNDATION™ Fieldbus.

Hazardous Area Approvals: ATEX, IECEx, cQPSus, NEPSI, INMETRO, FM, CSA, and PESO.

Industry Standards: Compliant with NAMUR guidelines NE 21, NE 43, NE 53, and NE 80.

Diagnostics & Verification: Embedded OPTICHECK technology for continuous sensor diagnostics, parameter monitoring, and status verification reports.
