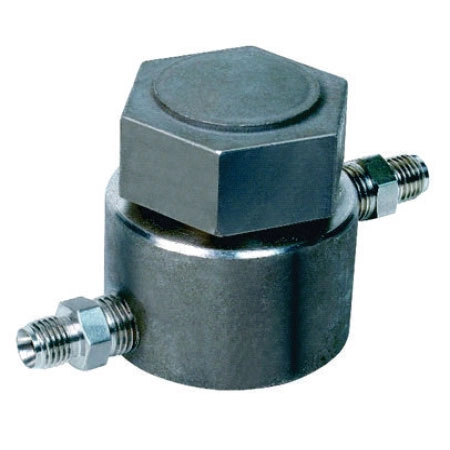

Relisafe ™ LPSF
Even in low-pressure cooling, condensate, or municipal water lines, suspended particles act as a destructive abrasive to pH, conductivity, and silica sensors. The Forbes Marshall Relisafe™ LPSF is a high-efficiency inline filter designed to block 40-micron suspended particles from entering sensitive analyzers in low-to-medium pressure sampling systems (up to 250 Kg/Cm²).
The uniquely designed hexagonal cap provides an excellent grip, allowing the user to simply unscrew, extract the 40-micron element, clean it, and resume operations in mere moments. With standard double-ferrule compression fittings, it integrates seamlessly into existing SWAS panels while keeping flow pressure drops virtually non-existent at less than 2 Kg/Cm²
Applications of Relisafe™ LPSF:
Low-pressure boiler sampling, condensate return lines, cooling water monitoring, and any SWAS application requiring rapid maintenance particulate filtration up to 250 Kg/Cm²
- Effortless Maintenance: An ergonomic hex cap provides exceptional grip, allowing for fast, tool-free extraction and cleaning of the filter element
- Consistent Analyser Protection: Rated at 40 microns, it successfully removes suspended matter to keep downstream sensors functioning accurately
- Seamless Integration: Features 1/4″ OD double ferrule compression type tube connections for easy installation into standard analyser racks
- High-Temperature Flexibility: Available in a standard 100°C model or an upgraded 200°C variant for elevated process heat
Relisafe™ LPSF
