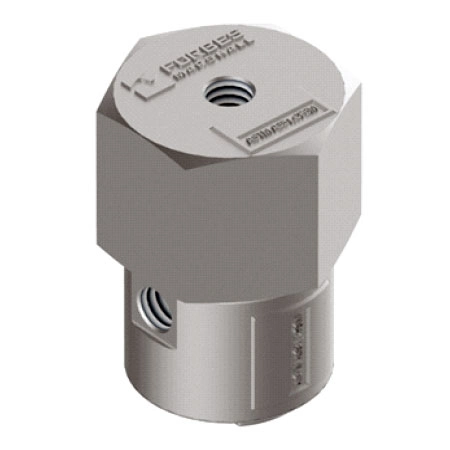

Relisafe ™ HPSF
High-pressure boiler feedwater often carries abrasive suspended matter that can easily blind or irreversibly damage expensive online water chemistry analysers. The Relisafe™ HPSF (High Pressure Sample Filter) acts as a defensive barrier for your instruments. Built to withstand blistering pressures of up to 350 Kg/Cm², this unit utilises a heavy-duty SS316 housing that guarantees absolute structural integrity.
Moving away from cumbersome legacy filter designs, the HPSF is built completely around user experience. To clean the 40-micron element, an operator can simply unscrew the prominently designed hexagonal cap, flush the mesh, and replace it in seconds. Crucially, it manages this high-level filtration without starving your downstream analysers, maintaining a negligible pressure difference of less than 2 Kg/Cm² across the entire unit.
Applications of Relisafe™ HPSF:
First-stage particulate filtration in supercritical boiler water sampling, high-pressure SWAS racks, and any heavily pressurized industrial line requiring 40-micron protection prior to analytical sensing.
- Extreme Pressure Rating: Built specifically for demanding boiler applications, safely handling design pressures up to 350 Kg/Cm²
- Rapid, Tool-Free Maintenance: An ergonomic hex cap provides a superior grip, completely streamlining the process to remove, clean, and replace the filter element
- Premium Protection: Consistently filters out damaging particles sized up to 40 microns, extending the life of your downstream sensors
- Unrestricted Analyser Flow: Designed for maximum throughput (up to 100 LPH) while keeping the pressure drop below 2 Kg/Cm²
Relisafe™ High Pressure Sample Filter (HPSF)
Relisafe ™ LPSF
Sight Glass IndicatorFrequently Asked Questions
The HPSF is built to handle extreme sample lines with a design pressure of up to 350 Kg/Cm²
The filter element is rated to remove suspended matter and particles up to 40 microns in size.
No, it is designed to handle flow rates up to 100 LPH while keeping the pressure difference across the filter to less than 2 Kg/Cm².
It features an ergonomic hex cap that provides a strong grip. You simply remove the cap, take out the element, clean it, and replace it.
